BIGTREETECH EBB 36/42 Can Bus for Connecting Klipper Expansion Device Support PT1000
From $29.95 Select options

BIGTREETECH EBB 36/42 Can Bus for Connecting Klipper Expansion Device Support PT1000

From $29.95

* Get free shipping for orders over $150.00

BIGTREETECH EBB 36/42 Can Bus for Connecting Klipper Expansion, BTT EBB36, BTT EBB42, Fast Shipping From Sydney, Local Pick-up Available

(1 customer review)

Local Pickup available at 3D BRO

Usually ready within 15 mins

View store information

BIGTREETECH EBB 36/42 Can Bus for Connecting Klipper Expansion Device Support PT1000

bigtreetech u2c

The difference between EBB v1.0 and v1.2 is the MCU. EBB v1.2 comes with an STM32G0 series chip, while EBB v1.0 comes with an STM32F072 chip. STM32F072 chip has been used in many areas, and that causes the price to be higher than STM32G0B1.
STM32F072 has been used on 3D Printers for many years, which means it’s more stable.



Please refer to the Bigtreetech Github page for EBB36/42 documentations: https://github.com/bigtreetech/EBB

U2C documentation: https://github.com/bigtreetech/U2C



bigtreetech cb1 link: https://3dbro.com.au/product/bigtreetech-cb1-alternative-to-raspberry-pi/



btt ebb42 is designed for 42 stepper motors on exturder.

btt ebb36 is designed for 36 pancake stepper motors on exturder.

All EBB Can Bus Versions support PT1000

1000 11000 021000 041000 061000 071000 081000 091000 101000 111000 121000 131000 14 effb7328 f6a5 4d3e a9de 7ac11f575d3b

Additional information

Weight0.1 kg
Dimensions1 × 1 × 1 cm
EBB Model

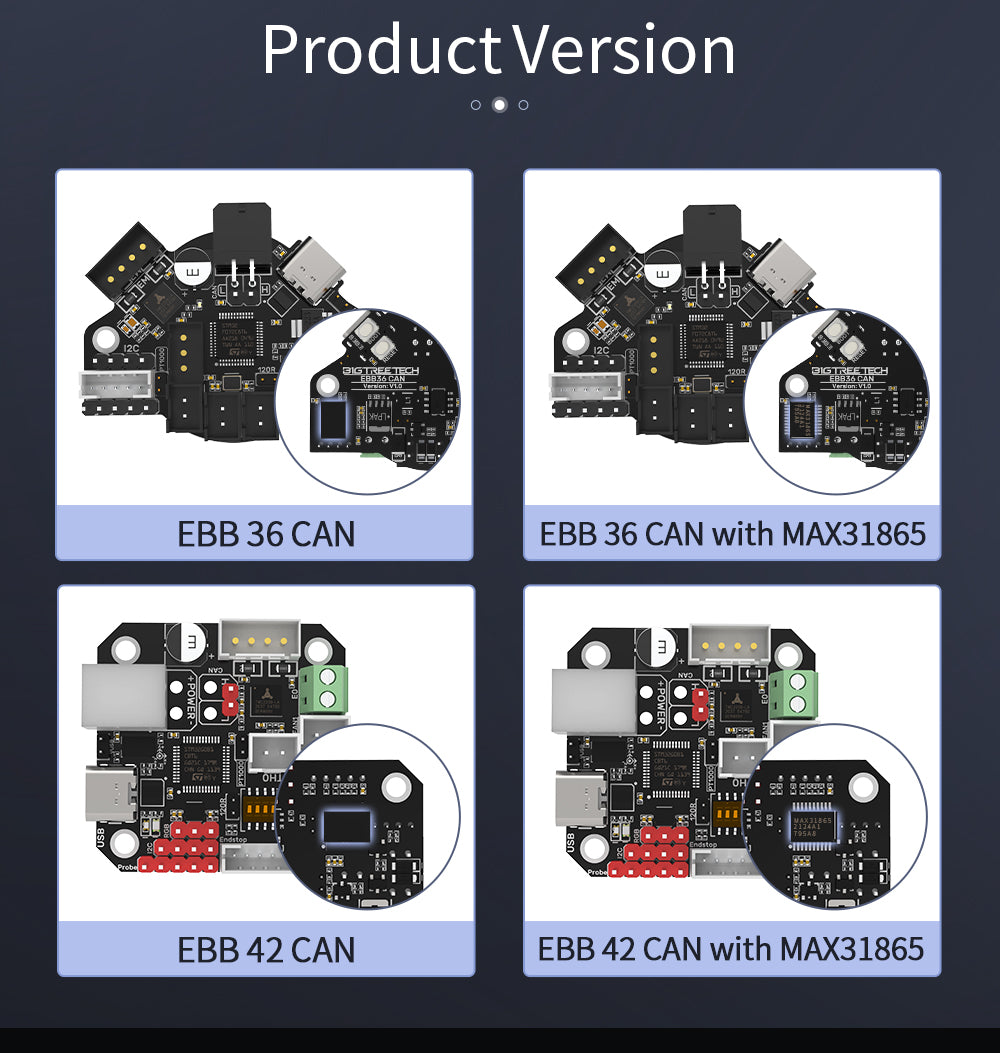

U2C V2.1(3 CAN Output), U2C V1.1 (3 CAN Output), U2C V1.0 (1 CAN Output), EBB36 CAN V1.2, EBB36 CAN V1.2 (With out Max31865), EBB36 CAN V1.0 (With out Max31865), EBB42 CAN V1.0, EBB42 CAN V1.2 (With out Max31865), EBB36 CAN V1.0, EBB42 CAN V1.0 (With out Max31865), EBB42 CAN V1.2

1 review for BIGTREETECH EBB 36/42 Can Bus for Connecting Klipper Expansion Device Support PT1000

  1. Peter Duvenhage

    Please note that I received the board and ALL required plugs in a separate bag in the same box. The plugs are the molex type 4pin quare and JST types for the other connectors including 2 brass stand-offs with a heatsink for the 2209!
