BIQU H2 V2 Direct Extruder For B1 BX Ender 3/ 3 V2/5/6 CR6/10
$130.00 Add to cart

BIQU H2 V2 Direct Extruder For B1 BX Ender 3/ 3 V2/5/6 CR6/10

$130.00

* Get free shipping for orders over $150.00

BIQU H2 V2 Direct Extruder Full Metal Double gear extrusion. Weight: 211g.

In stock

Frequently Bought Together
$17.00

Local Pickup available at 3D BRO

Usually ready within 15 mins

View store information

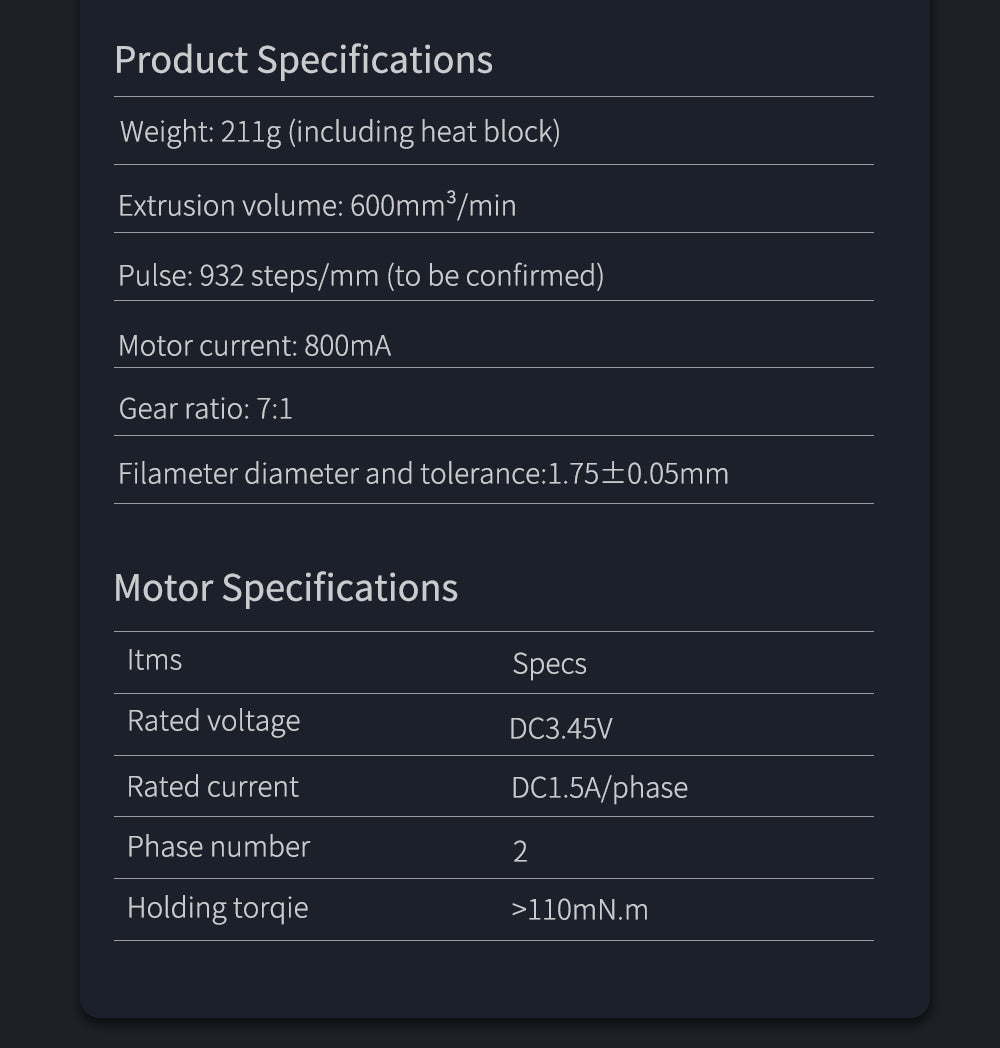

BIQU H2 V2 Extruder Kit

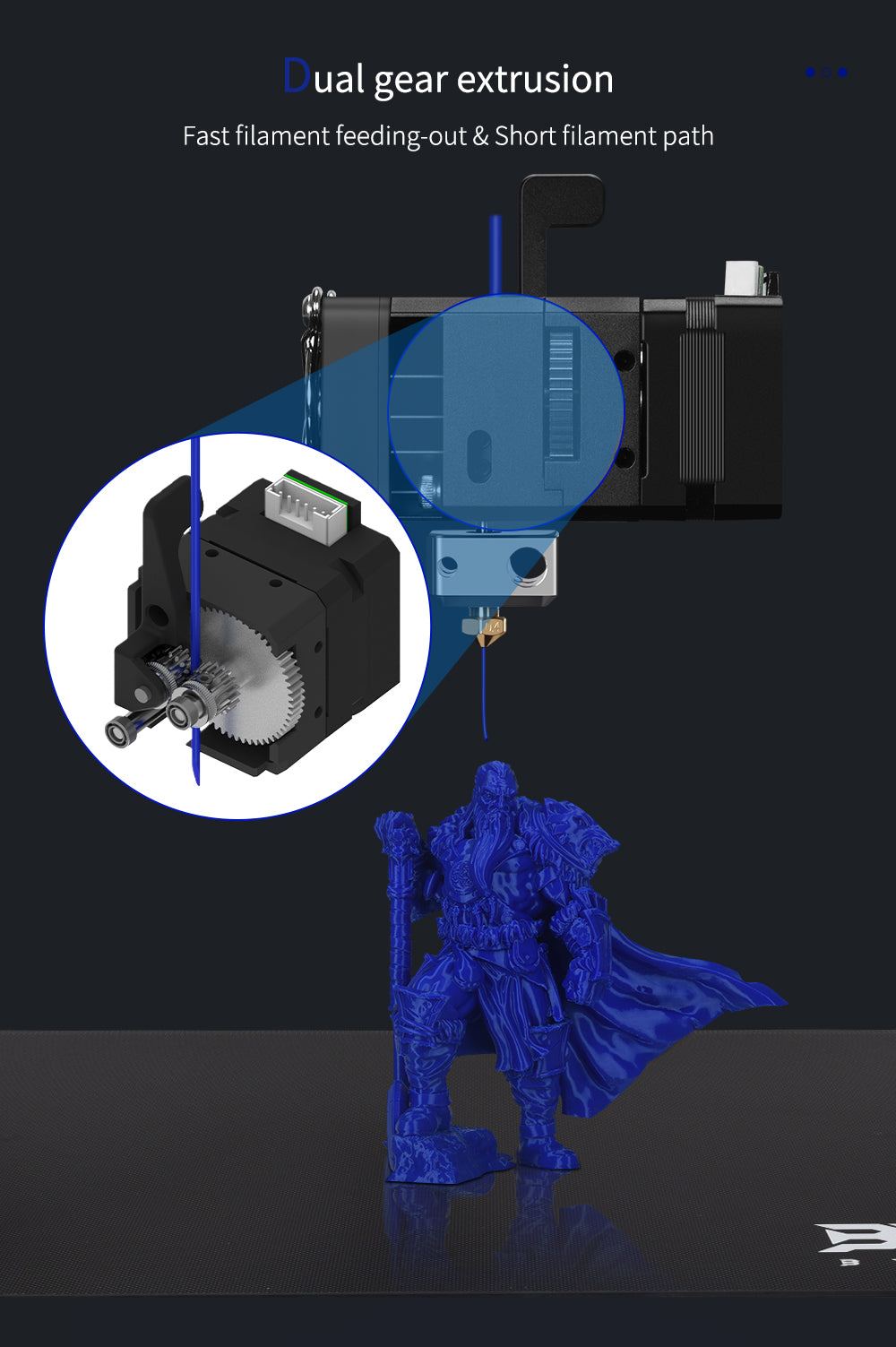

Extrusion method: Double gear extrusion

Maximum printing temperature: 270℃

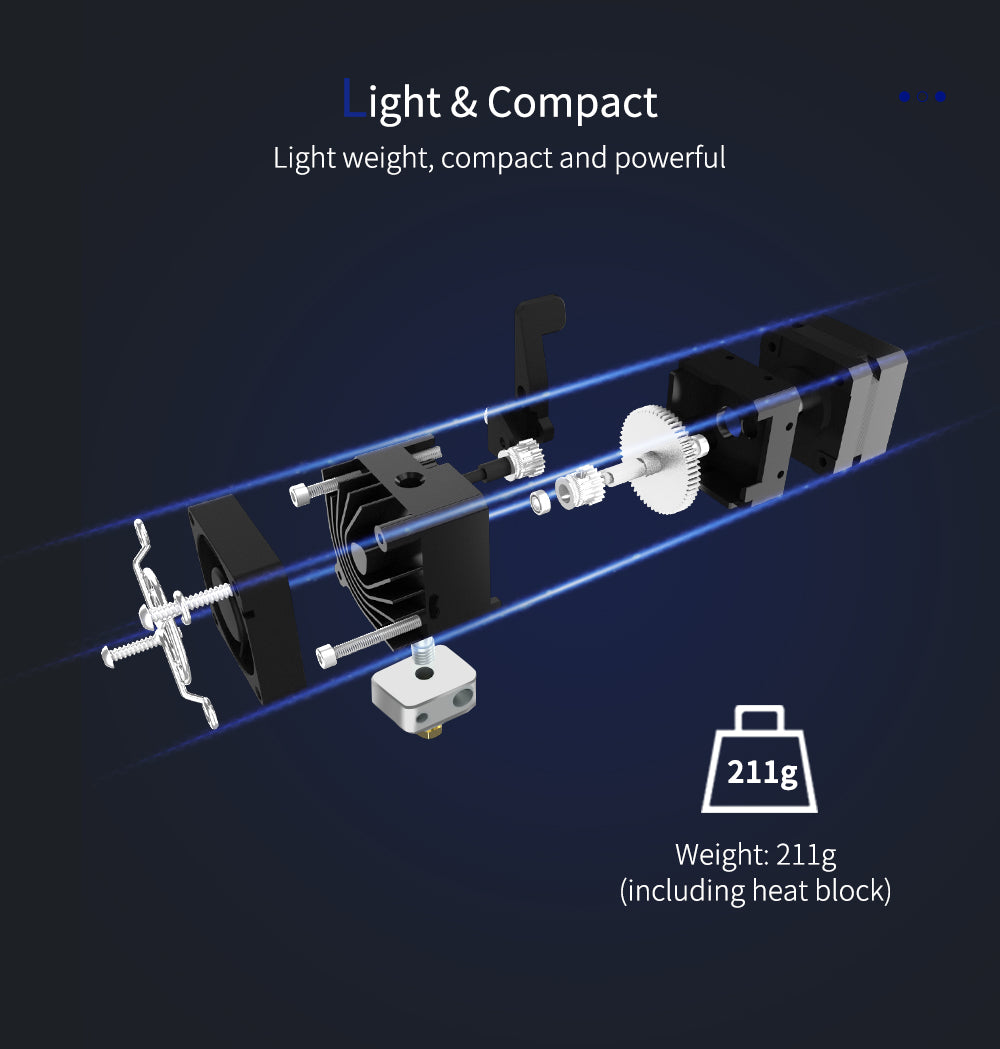

Weight: 211g (including heating aluminum block, fan)

Maximum extrusion force: 7.5kg (depending on filaments)

Extrusion capacity (based on existing): 600mm³/min(depending on filaments)

Number of pulses: 932steps/mm for stepper motor drive at 16 subdivisions (micro-steps) (further correction is required)

Recommended motor current: 800mA

Filaments’ diameter and tolerance: 1.75±0.05mm

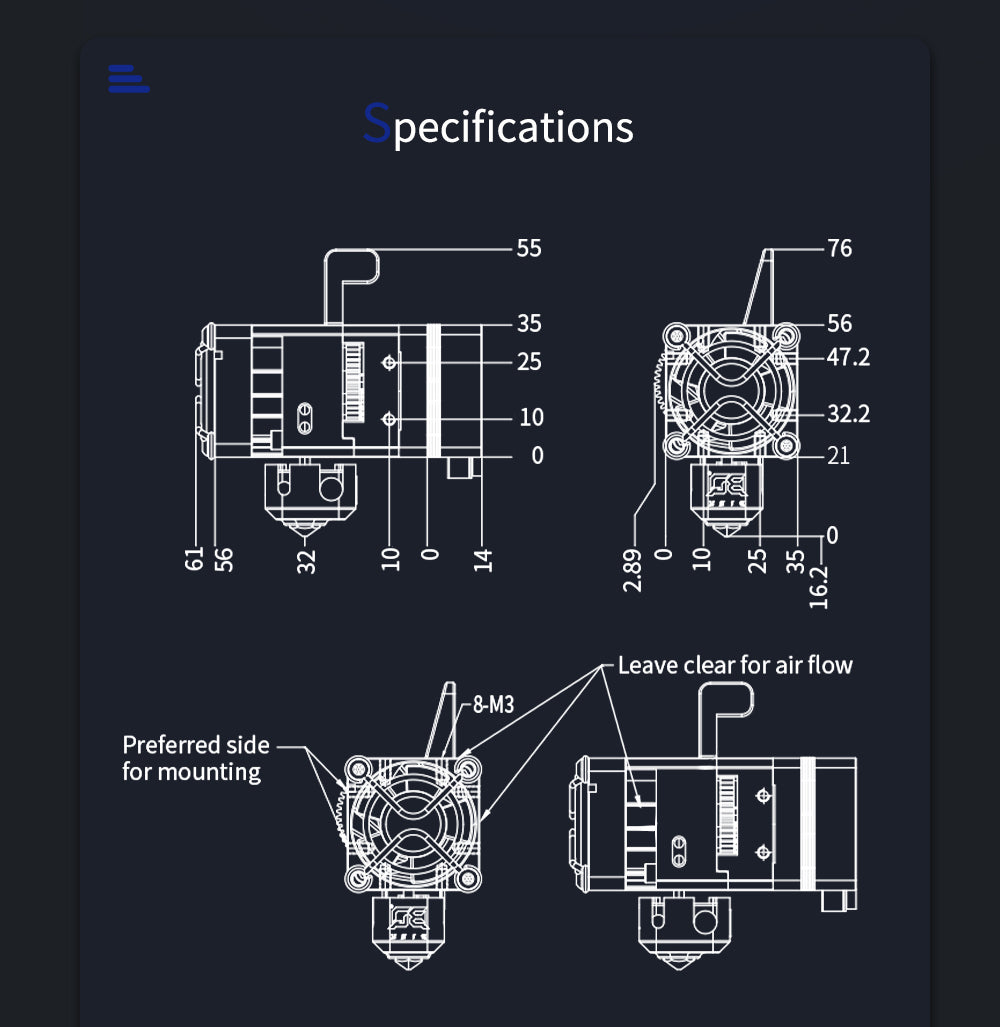

Mounting downloads:

 https://bigtree-tech.com/pages/download

BIQU H2 v2H2 V2 02H2 V2 03H2 V2 04H2 V2 05H2 V2 06H2 V2 07H2 V2 08H2 V2 09



Additional information

Weight0.1 kg
Dimensions1 × 1 × 1 cm
